Imagine a future where quantum computing isn’t just a distant dream but a scalable reality. That future just got a little closer, thanks to a groundbreaking innovation from Qutech. In a recent publication (https://www.nature.com/articles/s41928-026-01569-5), researchers have unveiled a revolutionary chip architecture designed to supercharge the development of semiconductor spin qubits. Dubbed the Qubit-Array Research Platform for Engineering and Testing (Qarpet), this platform introduces a crossbar layout that allows hundreds of qubits to be tested on a single chip under real-world conditions. But here’s where it gets exciting: this architecture doesn’t just scale—it mimics the efficiency and density of traditional semiconductor manufacturing, bringing quantum computing closer to industrial-scale production. As lead researcher Giordano Scappucci puts it, ‘With such a complex, tightly packed quantum chip, we’re starting to see parallels with the semiconductor industry.’ And this is the part most people miss: Qarpet isn’t just a testing platform—it’s a bridge between quantum research and practical, large-scale implementation.

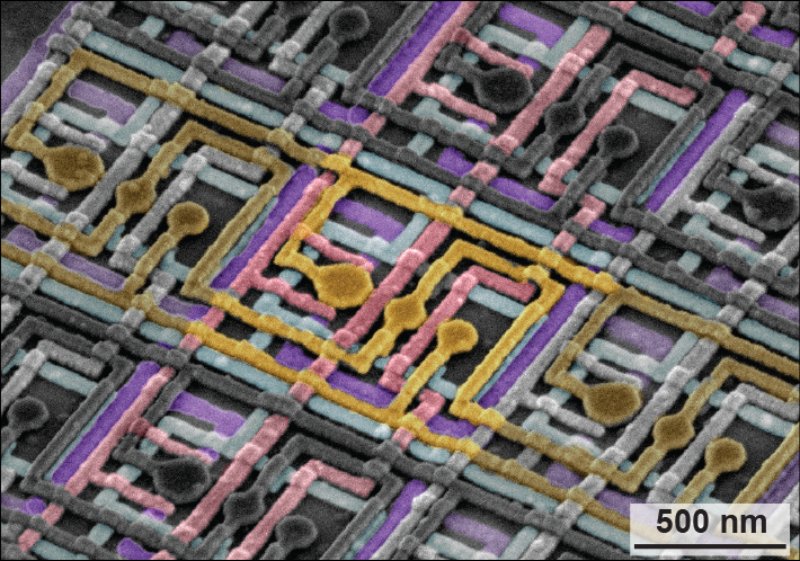

The demonstration chip, built using a germanium/silicon-germanium heterostructure, features a 23x23 grid of tiles, each housing two hole-spin qubits and a charge sensor. This modular design allows each tile to be individually controlled via shared row and column lines, enabling the chip to host up to 1,058 qubits with just 53 control lines. That’s efficiency on a whole new level! The architecture achieves a staggering potential density of roughly two million qubits per square millimeter, a feat that could redefine what’s possible in quantum hardware. But here’s where it gets controversial: while the design is compatible with silicon qubits, making it versatile, some experts argue that the complexity of scaling to millions of qubits could introduce unforeseen challenges. What do you think—is this the breakthrough quantum computing needs, or are we underestimating the hurdles ahead?
During testing, the team characterized 40 tiles using high-frequency electrical readout, proving the system’s ability to address and tune individual units. This makes Qarpet an ideal testbed for next-generation materials and automated tuning strategies. And this is the part most people miss: its modularity isn’t just a feature—it’s a game-changer for accelerating quantum innovation. By simplifying the testing process, Qarpet could slash development timelines and bring us closer to practical quantum applications. But let’s spark some debate: Could this architecture become the industry standard, or will its complexity limit its adoption? Share your thoughts in the comments—we’d love to hear your take on this quantum leap forward!
